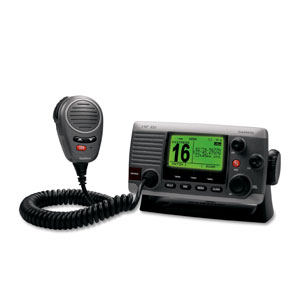

The Garmin VHF 100i marine receiver features intuitive design and provides radio communication to enhance convenience and safety to mariners worldwide.

Communicate with Confidence

With up to 25 watts of transmit power at your fingertips, you’ll be able to stay in touch anywhere on the water. So no matter where you are or where you’re heading, you’ll always have a line of communication open to make sure every voyage is a safer voyage.

Safety First

The Garmin VHF 100i provides full Class D Digital Selective Calling (DSC) capability via NMEA 0183 interface. Should trouble arise, DSC provides distress calls with the push of a button. And if your boat is already interfaced with a compatible GPS chartplotter, you’ll get mayday signaling and a digital broadcast of your boat’s position. The VHF 100i also features Position Tracking, which allows a mariner to locate and keep tabs on up to three other boats in the area.

At-A-Glance Information

The VHF 100i has a simple user interface that’s easy to read while on the go, so you’ll always have the right information at the right time. In addition to dedicated buttons and knobs for easy use, the VHF 100i features three soft keys linked to onscreen menus that allow boaters to see and select the information they want. The VHF 100i also offers premium sound quality so every message is loud and clear. And to make sure the data stands out, the information is available on a 3.2" (8.13 cm) display – the largest screen available in its class.

Detailed Design

The VHF 100i is built to brave the elements. And to simplify the installation process, it also can be mounted in a variety of configurations. With removable front caps, the VHF 100i can be easily added in cockpit consoles or cabin bulkheads. It’s the only front flush-mounting capable marine radio available on the market today, which makes the VHF 100i as flexible as it is functional. It’s made to last with rugged design that’s also submersible (IPX7 standards), so you’ll get a full-featured marine receiver that’s ready to go in a compact fixed-mount design.

相關連結

Physical & Performance
Unit Dimensions, WxHxD: Flush-Mounted	7.16 x 3.86 x 6.42" (18.2 x 9.8 x 16.3 cm); Bracket-Mounted: 7.56 x 4.65 x 6.42" (19.2 x 11.8 x 16.3 cm)
Waterproof	(IPX7)
Temperature Range	from 14ºF to 122ºF (from -10ºC to 50ºC)
Compass-safe Distance	20 in. (500 mm)
Speaker Microphone Audio Power	94 dBA
Digital Selective Calling	Class D
Frequency Bands	All USA, Canadian, and International marine channels; 10 NOAA weather channels
Operating Voltage	12.0 Vdc
Current Drain	Standby: 350 mA; Receive: 600 mA; Transmit: 6.0 A at HI power (25 W); 2.0 A at LO power (1 W)
Transmitter Output (at 13.6 Vdc)	25 W (HI); 1 W (LO)
Frequency Range	156.050 MHz to 163.275 MHz (including WX channels)

VHF 100
Power cable
Bail mount and knobs
Flush mount gasket
Marine mounting screws
Mic hanger
Protective cover
Documentation
