GNX™ Wind Wired Sail Pack

產品料號 010-01248-50

線上商店

產品特色
產品規格
標準配備
軟體更新
配件
適用機台

The Information You Need to Make Confident Decisions

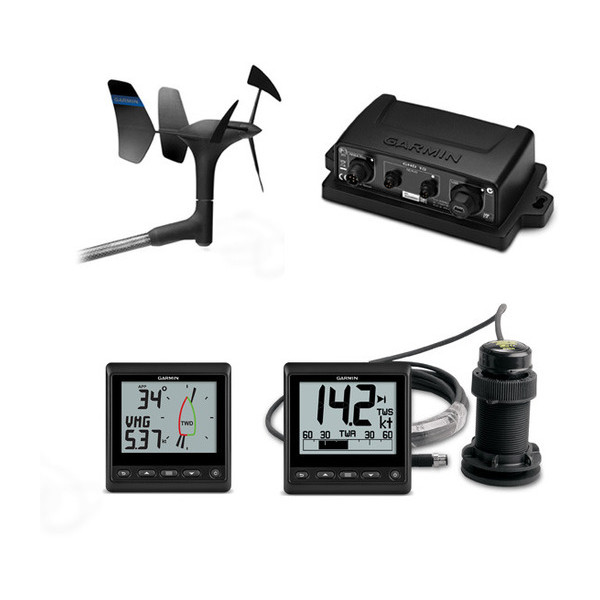

Includes GNX Wind, gWind™ Wired, GNX™ 20 and DST800
GNX Wind and GNX 20 instruments have highly visible monochrome LCD displays
gWind Wired transducer features 3-bladed propeller and twin-fin design
DST800 thru-hull smart transducer provides water depth, water speed and water temperature data
Easy plug-and-play installation between Nexus®, Garmin chartplotters, NMEA 2000® and USB

Know the Wind and Water

With a GNX Wind Wired Sail Pack, you will have all the equipment you need to know what’s going on with the wind and the water.

GNX Wind Marine Instrument

GNX Wind gives you the wind data necessary to make confident decisions. Features high-visibility, glass-bonded backlit monochrome LCD display with customizable backlight colors. It also interfaces through the NMEA 2000 network to show 2 data fields and a digital wind rose simultaneously to display true and apparent wind data, steering guidance, boat speed and more. Low power consumption of 350 mW daylight (no backlight) and 400 mW nighttime (mid-level backlight) is perfect for sailboats. Fully customizable user profiles allow you to configure the screen layout to your preferred setting. Display configurations include more than 15 important marine parameters for wind, speed and navigation. It can even wirelessly connect to a quatix® 3 GPS marine smartwatch via ANT technology to stream wind data directly to your wrist.

gWind Wired Transducer

gWind transducer features twin-fin technology with 3-bladed propeller for more accurate True Wind Speed (TWS) in lighter air while the twin-fin design gives a more stable True Wind Angle (TWA). The 3-bladed propeller, unlike a cups design, is always efficient. Combined with optic reading, this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity.

GNX 20 Marine Instrument

The easy-to-read GNX 20 marine instrument display with black digits on a white or color background clearly shows water depth, boat speed through the water, water temperature and 50-plus marine and boat parameters. Its glass-bonded display with anti-glare lens coating provides excellent daytime and nighttime readability with high-contrast digits scalable up to 36 mm.

DST800 Thru-hull Smart Transducer

DST800 provides water depth, water speed and water temperature data to the NMEA 2000 network and GNX 20 instrument. This 100 W transducer can read depths up to 330 feet, and it has an operating frequency of 235 kHz and a beamwidth of 10x44 degrees.

相關連結

Unit Dimension, WxH: 13.6" x 24" (345 mm x 610 mm)
Weight: 350 g
Cable Length: 25 m (Wind transducer cable)
Waterproof: Yes (IPX6¹)
Temp Range: From 5°F to 158°F (-15°C to 70°C)
Storage Temperature: From -4°F to 176°F (-20°C to 80°C)
Voltage Range: 9-16V
Accuracy Angle: Better than ±1.5°
Speed: Better than ±3%
Wind Speed Range: 0. 8-90 knots (0. 4-50 m/s)
NMEA 2000® Load Equivalency Number (LEN): 3
Wireless Connectivity: (ANT only for GNX Wind)

¹Protected against heavy seas

gWind Wired transducer
GMI™ 20
GND 10
DST800 thru-hull smart transducer
NMEA 2000 drop cable (2 m)
NMEA 2000 T-connector
Nexus female field installable connector
Mast bracket
Mounting hardware
NiMH battery
Documentation
