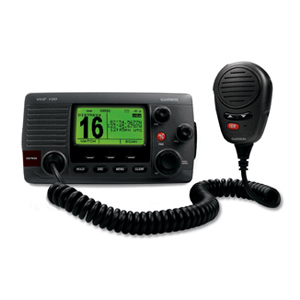

The VHF 100 has an intuitive design and provides radio communication for convenience and safety.

Communicate with Confidence

With up to 25 watts of transmit power at your fingertips, you’ll be able to stay in touch anywhere on the water. So no matter where you are or where you’re heading, you’ll always have a line of communication open to make sure every voyage is a safer voyage.

Safety First

The VHF 100 provides full Class D Digital Selective Calling (DSC) capability via NMEA 0183 interface. Should trouble arise, DSC provides distress calls with the push of a button. And if your boat is already interfaced with a compatible GPS chartplotter, you’ll get mayday signaling and a digital broadcast of your boat’s position. The VHF 100 also features NOAA weather alerts and Position Tracking, which allows you to locate and keep tabs on up to 3 other boats in the area.

At-a-glance Information

The VHF 100 has a simple interface that’s easy to read while on the go, so you’ll always have the right information at the right time. In addition to dedicated buttons and knobs for ease of use, the VHF 100 features 3 soft keys linked to onscreen menus that allows you to see and select the information you want. The VHF 100 also offers premium sound quality so every message is loud and clear. And to make sure the data stands out, the information is available on a 3.2" (8.13 cm) display — the largest screen available in its class.

Detailed Design

The VHF 100 can be mounted in a variety of configurations. With removable front caps, the VHF 100 can be easily added in cockpit consoles or cabin bulkheads. It’s the only front flush-mounting capable marine radio available on the market today, which makes the VHF 100 as flexible as it is functional. It’s made to last with rugged design that’s also submersible (IPX7 standards), so you’ll get a full-featured marine receiver that’s ready to go in a compact fixed-mount design.

相關連結

Physical & Performance

Unit Dimensions, WxHxD: Flush-Mounted: 7.16 x 3.86 x 6.42" (18.2 x 9.8 x 16.3 cm); Bracket-Mounted: 7.56 x 4.65 x 6.42" (19.2 x 11.8 x 16.3 cm)

Waterproof: yes (IPX7)

Temperature Range: from 14ºF to 122ºF (from -10ºC to 50ºC)

Compass-safe Distance: 20 in. (500 mm)

Speaker Microphone Audio Power: 94 dBA

Digital Selective Calling: Class D

Frequency Bands: All USA, Canadian, and International marine channels; 10 NOAA weather channels

Operating Voltage: 12.0 Vdc

Current Drain: Standby: 350 mA; Receive: 600 mA; Transmit: 6.0 A at HI power (25 W); 2.0 A at LO power (1 W)

Transmitter Output (at 13.6 Vdc): 25 W (HI); 1 W (LO)

Frequency Range: 156.050 MHz to 163.275 MHz (including WX channels)

VHF 100
Power cable
Bail mount and knobs
Flush mount gasket
Marine mounting screws
Mic hanger
Protective cover
Documentation
