GPSMAP® 7608xsv

產品料號 010-01305-03

線上商店

產品特色
產品規格
標準配備
軟體更新
配件
適用機台

8-inch Multi-touch Widescreen Chartplotter/Sonar Combo

8-inch multi-touch widescreen display (1024 x 600 WSVGA) preloaded with both BlueChart® g2 U.S. coastal and LakeVü™ HD maps
Built-in dual CHIRP sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonar with the clearest images on the water (transducer sold separately)
High-sensitivity internal 10 Hz GPS/GLONASS
Fully network capable for Garmin Marine Network and NMEA 2000®, plus NMEA 0183 support
Supports GSD™ 26 professional sonar module

Designed for sportfishermen, cruisers, sailors and sailing racers who demand high performance, ease of operation and feature integration in a chartplotter/sonar combo. The 8-inch multi-touch widescreen GPSMAP 7608xsv combo includes built-in dual CHIRP sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonar with the clearest images on the water. Its internal 10 Hz GPS updates your position and heading 10 times per second. GPSMAP 7608xsv is fully network capable, including Garmin Network and NMEA 2000, and offers the conveniences of built-in Wi-Fi® connectivity.

Built-in Advanced Sonar Capabilities

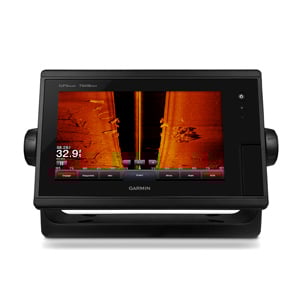

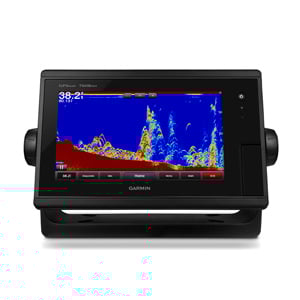

The built-in sonar capabilities of the GPSMAP 7608xsv include 1 kW dual CHIRP sonar, the most sophisticated sonar technology available for the fishing and boating public. Dual CHIRP sonar provides amazingly clear target separation and definition because it puts even more energy onto the target than CHIRP. It gives you the ability to show low/high, med/high or low/med on the screen at the same time, enhancing your ability to distinguish between game fish and balls of bait fish. It also includes both CHIRP ClearVü and CHIRP SideVü scanning sonar that provide nearly photographic sonar images of fish and structure that passes below and to the sides of your boat. Garmin ClearVü and SideVü provide the clearest scanning sonar images on the water. Also supported are 50 kHz/200 kHz, 77 kHz/200 kHz and Minn Kota® and MotorGuide® trolling motor transducers (sold separately). GPSMAP also includes sonar-recording capability that coordinates the timing of the sonar return with your boat's position and saves digital information for playback on a computer using HomePort™ planning software.

Preloaded BlueChart g2 maps

In addition to basic charts, tidal stations, currents, depth contours, IALA symbols and included fishing charts, BlueChart g2 offers smooth transitioning between zoom levels and more seamless continuity across chart boundaries. You can customize your screens with Safety Shading that allows you to shade all depth contours shallower than your boat’s safe depth. Fishing charts emphasize bathymetric contours with less visual clutter on the display. And there’s also a choice of standard 2-D direct overhead or 3-D “over-the-bow” map views for easier chart reading and orientation.

Preloaded LakeVü HD maps

These highly detailed freshwater maps include 17,000+ U.S. lakes, rivers and reservoirs. Included in those are more than 5,700 HD lakes with 1-foot contours shoreline to shoreline; excellent detail of underwater features plus Safety Shading that allows you to designate a minimum depth; interstates, highways, general roads and bridges; designated fishing areas; and points of interest, such as docks, boat ramps, marinas and campgrounds.

Garmin Marine Network and NMEA 2000 Support

Full-network compatibility allows you to add more capabilities to your boat. GPSMAP 7608xsv supports radar, autopilot, instruments, multiple screens, FUSION-Link, sensors, remote sonar modules, digital switching, thermal cameras, GRID rotary knob, joystick and keypad control, GXM™ 52 marine weather receiver and more.

Add Array or Dome Radar

You can add your choice of Garmin marine radar, including our powerful xHD2 open array radars or xHD dome radars that pairs ease of use with advanced open array features.

Network Sharing

GPSMAP 7608xsv allows you to share features with other compatible GPSMAP units, such as radar, GSD 24, GSD 25 and GSD 26 sonar modules, supplemental maps, and user data, including waypoints, routes and tracks. User data entered into 1 chartplotter can be automatically synced with other chartplotters in a network.

Heading and Position Refreshed 10 Times Per Second

Fast, responsive 10 Hz GPS/GLONASS refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.

Upgrade with the Best Maps on the Water

Two SD™ card slots provide expandable memory for accessory map purchases, such as LakeVü HD Ultra with Max Def Lakes or BlueChart g2 Vision that add Garmin patented Auto Guidance and other great features.

FUSION-Link Entertainment System

Enjoy the ability to control all compatible FUSION-Link-enabled audio systems directly from your compatible chartplotter display.

Built-in Wi-Fi/ANT+™

Built-in Wi-Fi/ANT for use with Garmin Helm™ and BlueChart Mobile.

Special Sailing Features

Supported sailing features include laylines, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider. Gauge displays are designed to provide important need-to-know information at a glance, including true and apparent wind angle, set and drift, true or apparent wind speed, horizontal or vertical graphs, and a data bar with customizable data fields.

Compatible with gWind™ Transducers

Garmin gWind, gWind Wireless and gWind Race transducers feature twin-fin technology with 3-bladed propeller. Connect to the NMEA 2000 and compatible Garmin chartplotters via the GND™ 10 black box bridge.

Black Box Interface

The GND 10 black box interface seamlessly integrates Nexus instruments and sensors with the Garmin family. It converts data between the Nexus network and NMEA 2000 to provide trouble-free compatibility between Nexus and Garmin products.

View and Control Your Device from a Smartphone or Tablet

Garmin Helm allows you to view and control your compatible Garmin chartplotter from a compatible smartphone or tablet while providing enhanced situational awareness for the mariner. Easily switch between portrait and landscape mode to accommodate mounting preferences. When using an iPhone® or iPad®, you can even record a movie of your chartplotter screen to share with friends and family. Download from The App Store™ or Google Play™.

Get Your Apple® Device Onboard with BlueChart Mobile

With BlueChart Mobile, a free app downloaded from the App Store, you can plan marine routes on your iPad or iPhone then wirelessly transfer them to your boat’s compatible networked Garmin chartplotter. Even if you don’t have a Garmin chartplotter, you can still take advantage of the tremendous features of BlueChart on your Apple device.

iPhone and iPad are trademarks of Apple Inc. App Store is a service mark of Apple Inc. Android and Google Play are trademarks of Google Inc. Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Get Your Apple® Device Onboard with BlueChart Mobile

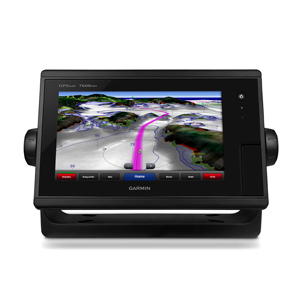

Enhanced Auto Guidance

Just enter the location where you want to go and patented Garmin Auto Guidance technology instantly searches through relevant charts to create a safe virtual pathway on the display that helps you avoid low bridges, shallow water and other charted obstructions en route.

Better still, with enhanced Version 2.0, you now have access to even more features and capabilities. You’re able to adjust the calculated Auto Guidance pathway by inserting “via” points at interim stops or landmarks along your desired route. You can easily review hazard points along your calculated path. And you can even engage your compatible Garmin autopilot to follow the Auto Guidance route, automatically. Other 2.0 enhancements give you the ability to calculate arrival times at any point on your route (great for timing arrivals to correspond with bridge openings and other time-critical events). Better still, you can now save your plotted Auto Guidance paths for future navigation by backing them up on an SD™ card with your BlueChart® g2 Vision® or Garmin LakeVü™ HD Ultra cartography¹.

Simplified SOS Calling

This exclusive SOS safety assist feature makes it easier for anyone – even those not familiar with marine electronics or radio protocols – to quickly call for Coast Guard help in an emergency. By simply tapping the SOS button on the chartplotter’s touchscreen display, your networked Garmin VHF radio will automatically tune to the Channel 16 emergency frequency and a list of possible situations (fire, man overboard, etc.) will be displayed. Once the applicable choice has been selected, the screen will provide a Coast Guard approved VHF radio distress call script, along with the ship’s current lat/long GPS coordinates, that can be read off to responders – thus saving time, averting panic, and providing the essential information needed by rescuers to assure the best possible outcome.

GPX Waypoints Transfer

If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product – or on a Garmin handheld device – now it’s easier than ever to transfer those items to your new Garmin chartplotter, via industry-standard GPX software formatting. GPX is an open standard format for GPS data exchange across platforms and applications. With this easy-to-use interface technology, Garmin has taken “no waypoint left behind” to a whole new level of trade-up convenience.

Special Sailing Features

To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line, along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more. You can also use available built-in wireless connectivity to access and control a variety of marine-specific apps via compatible smartphones or tablets.

Panoptix™ Down Transducer

With 1 Panoptix Down transducer, you get 3 remarkable views, allowing you to actually see fish and bait swimming around under your boat – in real time. You can even see fish in the water column in 3-D, from the bottom to the surface. You can be stationary yet still see things in 3-D below your boat.

LIVEVÜ DOWN

Shows real-time moving sonar images below the boat. This screen shows bait drop echo trail movement in purple with sonar history data at left.

REALVÜ 3-D DOWN

Scans the area below the boat from front to back and side to side. This screen shows a school of fish sitting against the back side of vertical face, on Pport side of boat 35 feet deep.

REALVÜ 3-D HISTORICAL

Scrolls through the data as the boat moves to show the history of entire water columns – from the bottom to the surface and all of the fish in between. This screen shows the boat passing over a stream channel with a school of fish between 30 to 40 feet.

Panoptix Forward Transducer

One Panoptix Forward transducer provides 2 impressive views, even while your boat is stationary. It shows the bottom plus fish and bait swimming in the water column in front of your boat – in real time. You can even see your lure as you reel it in. You can also get 3-D views of fish and structure in front of your boat.

LIVEVÜ FORWARD

Updates are provided with a single ping, providing real-time moving images of what’s in the water. This screen shows a large target (a diver) approaching the boat.

REALVÜ 3-D FORWARD

Digitally scans the area in front of the boat, creating a forward-looking 3-D view of the bottom, structure and fish. This screen shows fish targets at 10 feet and drawing bottom depth of 20 feet.

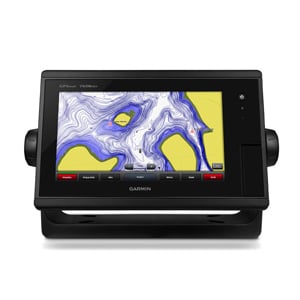

Create your own HD maps

Quickdraw Contours is a free, easy-to-use software feature that is already installed on your compatible Garmin device. It instantly creates your very own personalized HD fishing maps with 1-foot contours. Tailor them to fit your needs. They are your maps. You own them. Keep the data to yourself or share it with Garmin or your friends. There’s no special surveying expertise required. You just fish while it creates maps. You don’t have to wait around or send your files away like other mapping software requires — your results appear instantly. Use with any Garmin Panoptix™, any HD-ID™, any CHIRP-enabled, Garmin ClearVü™ transducer or NMEA 2000®-compatible depth transducer. Have more than 1 sonar device installed onboard? Quickdraw Contours automatically selects the most capable sonar device to provide the very best results for you!

Multiple Depth Range Shading

Designate up to 10 different depth ranges each with its own color. Makes it easier to view target depths at a glance.

Commission Autopilot from Chartplotter

To make commissioning easier and more convenient, you can handle the entire autopilot commissioning process from your chartplotter screen.

Axis Camera Support

Garmin offers support for select Axis cameras, which can be used for surveillance and situational awareness on vessels of any size. Our integration allows you to view video on every screen on your boat and, if you wish, view multiple streams on the same screen. You can control your camera's pinch-to-zoom and pan/tilt settings with gestures directly on the plotter screen. Use an Axis encoder to convert analog camera, such as Garmin GC 10, to video over IP.

iPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Android and Google Play are trademarks of Google Inc. Wi-Fi is a registered trademark of the Wi-Fi Alliance.
¹BlueChart® g2 Vision® or Garmin LakeVü™ HD Ultra SD card is required for this technology.

相關連結

Physical & Performance
Physical dimensions	9.6” x 6.3” x 3.0” (24.4 x 16.0 x 7.6 cm)
Display size, WxH	7.0" x 4.0"; 8.0" diagonal (17.8 x 10.2 cm; 20.3 cm diagonal)
Display resolution, WxH	1024 x 600 pixels
Display type	WSVGA display
Weight	3.1 lbs.
Water rating	IPX7
Antenna	Internal or external over NMEA 2000
NMEA 2000® compatible
NMEA 0183 compatible
SiriusXM™ Weather & Radio compatible
Power consumption	Max power usage at 10 Vdc: 27 W Typical current draw at 12 Vdc: 1.8 A Max current draw at 12 Vdc: 2.3 A
Mounting options	Bail, flat or flush
Garmin Marine Network™ ports	2

Maps & Memory
Preloaded maps	BlueChart® g2 (coastal maps) and LakeVü HD (inland maps)
Accepts data cards	2 SD™ cards
Waypoints	5,000
Routes	100
Track log	50,000 points; 50 saved tracks

Chartplotter Features
Garmin Radar compatible
Garmin Sonar compatible
Garmin SmartMode compatible (customizable monitor presets)
Supports AIS (tracks target ships position)
Supports DSC (displays position data from DSC-capable VHF radio)
Tide tables
Garmin Meteor Audio System compatible
Supports Fusion-Link compatible marine radios
GSD™ Black Box sonar support
GCV™ Black Box sonar support
BlueChart® Mobile (planning) compatible
Garmin Helm compatible
GRID™ (Garmin Remote Input Device) compatible
Wireless remote compatible

Sonar Features & Specifications
Dual-frequency (50/200 kHz) sonar capable
Dual-beam (77/200 kHz) sonar capable
Frequencies supported	Traditional: 50/200, 77/200, 83/200 Single Channel CHIRP: 40-250 Dual Channel CHIRP: 40-250 SideVü/ClearVü: CHIRP 455/800 & CHIRP 260/455 (dependent on transducer)
Transmit power	1 kW traditional; 1 kW CHIRP
CHIRP sonar technology	(Built-in)
ClearVü™	with CHIRP (built-in)
SideVü™	with CHIRP (built-in)
Maximum depth	5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions)
Bottom lock (shows return from the bottom up)
Water temperature log and graph
Sonar recording
Sonar history rewind

Connections
NMEA 0183 input ports	2
NMEA 0183 output ports	2
Video input ports	1 Composite
Video output ports
Wireless connectivity

Additional

User interface: Multi-touch touchscreen
Auto backlight dimming: Yes
Supplemental map sharing: Yes
Internal sonar sharing: Yes, transmit and receive
Ability to share internal sonar with the following devices:
- GPSMAP 527/547 series
- GPSMAP 527xs/547xs series
- GPSMAP 721/741 series
- GPSMAP 721xs/741xs series
- GPSMAP 7400/7600 series
- GPSMAP 7400xsv/7600xsv series
- GPSMAP 8000 series
- GPSMAP 800/1000 series
- GPSMAP 800xs/1000xs series

GPSMAP 7608xsv J1939

GPSMAP 7608xsv J1939 preloaded with U.S. BlueChart® g2 and U.S. LakeVü™ HD
J1939 connector which offers a dedicated CAN port for receiving engine data
Power/data cable
NMEA 2000® drop cable
T-connector
Bail mount with knobs
Flush mount kit
Protective cover
Documentation

GPSMAP 7608xsv

GPSMAP 7608xsv preloaded with U.S. BlueChart® g2 and U.S. LakeVü™ HD
Power/data cable
NMEA 2000® drop cable
T-connector
Bail mount with knobs
Flush mount kit
Protective cover
Documentation
