GPSMAP 1222 Plus

產品料號 010-02322-00

線上商店

產品特色
產品規格
標準配備
軟體更新
配件
適用機台

ADVANCED NAVIGATION. ULTIMATE INTEGRATION.

The bright, sunlight-readable 9” intuitive touchscreen chartplotter with enhanced map drawing is easy to use in any environment and seamlessly integrates into your Garmin marine system.

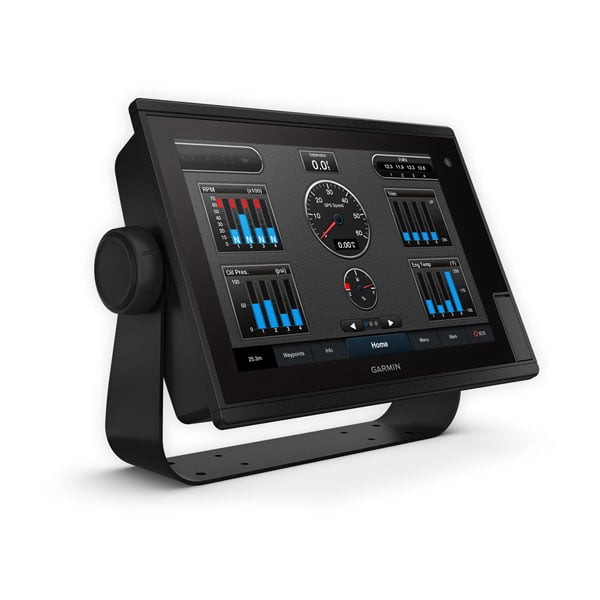

Easily integrate with more engines

Connect to your favorite third-party devices

Easily build your marine system using the best of network connectivity

Compatible with premium maps and charts for the best in Garmin navigation

Take the guesswork out of sailing with clear laylines and more right on the screen

Manage your marine experience from nearly anywhere

GARMIN SAILASSIST SAILING FEATURES

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more.

OPTIONAL BLUECHART G3 VISION CHARTS

These optional charts offer the best of Garmin and Navionics data, Auto Guidance technology and other premium navigation features ¹.

GARMIN MARINE NETWORK

If you have multiple Garmin devices on your boat, you can share information — such as maps, user data, radar and IP cameras — among them.

NMEA 2000 AND NMEA 0183 NETWORKS

Connect to autopilots, digital switching, weather, FUSION-Link audio system, media, VHF, AIS and more from one screen.

ACTIVECAPTAIN APP

Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications², software updates, Garmin Helm, Garmin Quickdraw Community data and more.

INTEGRATED ANT TECHNOLOGY

Connect with some of your favorite devices, such as quatix marine watches, gWind Wireless 2 transducers, GNX Wind marine instruments and wireless remote controls.

J1939 CONNECTIVITY

Now you can connect your chartplotter to different kinds of engines, including Yamaha engines.

ONEHELM FEATURE

This exclusive feature brings together all the operations and capabilities of third-party devices, such as EmpirBus digital switching, on one screen.

PANOPTIX SONAR SUPPORT

Pair with Panoptix or Panoptix LiveScope easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.

BlueChart g3 Vision Delivers Unparalleled Coastal Chart Coverage

learn more

See Everything with Ultra High-Definition Scanning Sonar System

learn more

¹ Auto Guidance is for planning purposes only and does not replace safe navigation operations
² When paired with a compatible smartphone
Wi-Fi is a registered trademark of the Wi-Fi Alliance.

相關連結

使用者手冊下載

General
Physical dimensions	13” x 8.9” x 3.1” (33.0 x 22.6 x 7.9 cm)
Display size	10.3" x 6.4"; 12.1" diagonal (26.2 x 16.3 cm; 30.7 cm diagonal)
Display resolution	1280 x 800 pixels
Display type	WXGA display
Weight	5.8 lbs. (2.6 kg)
Water rating	IPX7
Polarized Support
J1939 Compatible
Power consumption	Max power usage at 10 Vdc: 34.8 W Typical current draw at 12 Vdc: 2.2 A Max current draw at 12 Vdc: 2.9 A
Antenna	Internal or external over NMEA 2000
Mounting options	Bail or flush
Receiver	10 Hz high-sensitivity
Garmin Marine Network ports	2

Maps & Memory
Preloaded maps	None
Accepts data cards	2 SD cards; 32 GB max
Waypoints	5,000
Routes	100
Track log	50,000 points; 50 saved tracks

Outdoor Recreation Features
Tide tables

Chartplotter Features
Garmin Radar compatible
Garmin Sonar compatible	Yes (with external black box, sold separately)
Garmin SmartMode compatible (customizable monitor presets)
Supports AIS (tracks target ships position)
Supports DSC (displays position data from DSC-capable VHF radio)
Supports FUSION-Link compatible radios
GSD Black Box sonar support
GCV Black Box sonar support
ActiveCaptain compatible
GRID (Garmin Remote Input Device) compatible
Wireless remote compatible
Sailing Features

Sonar Features & Specifications
Dual-frequency (50/200 kHz) sonar capable	(with external black box, sold separately)
Dual-beam (77/200 kHz) sonar capable	(with external black box, sold separately)
CHIRP sonar technology	(with external black box, sold separately)
ClearVü	((with external black box, sold separately)
SideVü	((with external black box, sold separately)

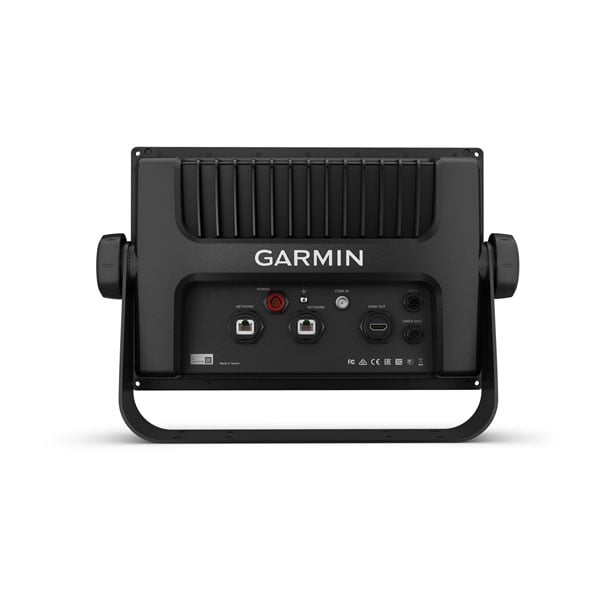

Connections
NMEA 2000 compatible
NMEA 0183 input ports	1
NMEA 0183 output ports	1
Video input ports	1 BNC
Video output ports	1 HDMI
Wireless connectivity

GPSMAP 1222 Plus chartplotter
Power cable
Bail mount with knobs
Flush mount kit with gasket
Protective cover
Trim piece snap covers
Documentation
