CR 1522
NEW

CR 1522

產品料號 010-02242-00

線上商店

CR 1522 CR 1522 CR 1522 CR 1522

KNOW WHAT’S AHEAD

Made for shipping and working vessels, CR 1522 is a keyed 15” stand-alone radar display with chart compatibility that offers important information at a glance on its portrait display.

The sun won’t steal your screen. The large display is sunlight readable.

Being on the radar means offering both traditional and solid-state.

A good track record starts with simplify Target Tracking (TT). Follow up to 50 targets.

Go long (or short) with dual-range capabilities for visibility.

Coast along with both BlueChart and BlueChart Vision charts.

LARGE DISPLAY

Get information quickly with the large 15” portrait-oriented (4:3), sunlight-readable screen. Its dedicated knobs make key features easy to access on the water.

GARMIN RADAR

CR 1522 is compatible with traditional and solid-state Garmin radars for outstanding performance.

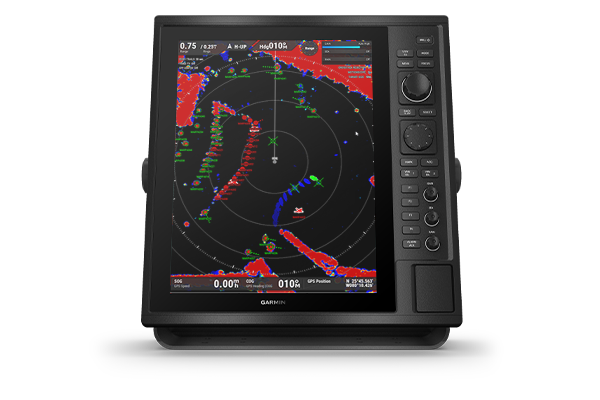

SIMPLIFY TARGET TRACKING

Track up to 50 selected targets to help keep an eye on what’s out there.

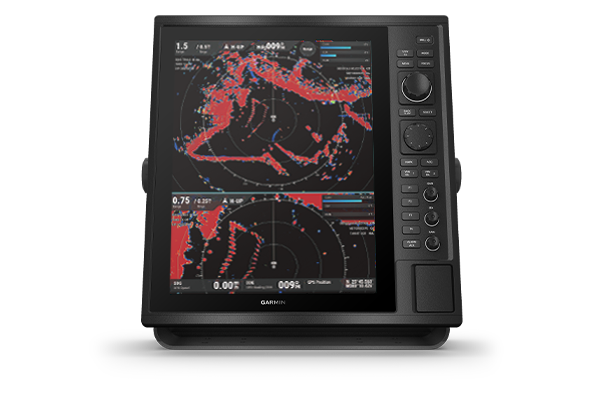

DUAL-RANGE CAPABILITIES

Get short- and long-range visibility on your device to see what’s close and far.

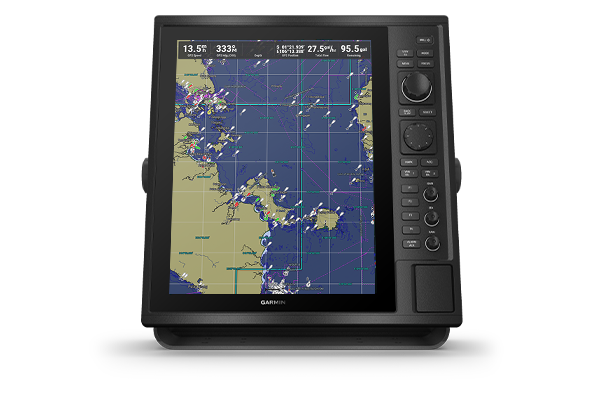

COASTAL CHARTS

Get quick access to BlueChart and BlueChart Vision coastal charts with the dual SD card slots.

CHART COMPATIBILITY

The CR 1522 device comes with key chartplotter features, including optional mapping.

KEEP UP EASILY

The dual SD card slots make it simple to back up your data and stay up to date on software updates.

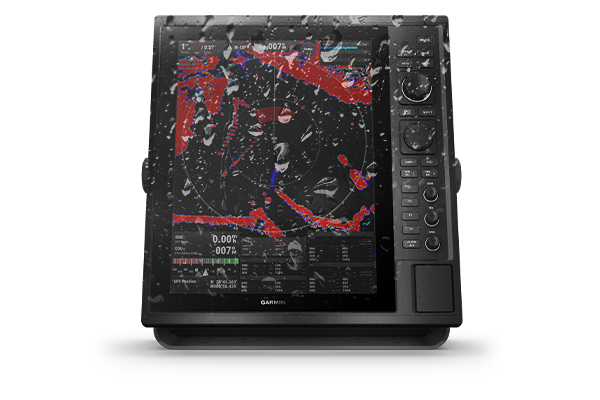

WATER-RESISTANT

The device is IPX6 & IPX7 (IEC60529) in water resistance.

General

PHYSICAL DIMENSIONS 355 x 376.7 x 82.7 mm
DISPLAY SIZE 15" diagonal, (228.1 x 304.1 mm diagonal)
DISPLAY RESOLUTION 1024 x 768 pixels
DISPLAY TYPE XGA
WEIGHT 3.7 kg (5.7 kg with bail mount)
WATER RATING IPX6 & IPX7 (IEC60529)
POWER SUPPLY 10 to 36 VDC
POWER CONSUMPTION 2.71 A (typical current draw @ 12 VDC)
3 A (Max. current draw @ 12 VDC)
ANTENNA external over BNC
MOUNTING OPTIONS Flat and flush, bail with optional accessory (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge are required.)
RECEIVER 10 Hz GPS/GLONASS/GALILEO/BEIDOU/QZSS/GAGAN AND SBAS
Multi-languages support English, Simplified Chinese, Traditional Chinese, Japanese, Korean, Thai, Indonesia Bahasa, Malaysia Bahasa, Vietnamese, Burmese, Hindi, Gujarat

Maps & Memory

PRELOADED MAPS Worldwide basemap
Bluechart compatibility
ACCEPTS DATA CARDS 2 SD card slots; 32 GB Max. storage
WAYPOINTS 5,000
ROUTES 100
TRACKS 50 saved tracks

Radar Features & Specifications

pip zoom
Target tracking Up to 50 targets
radar overlay
dual range
dual guard zone alarm
dual ebl/vrm
radar chart orientation Head Up
North Up
Course Up
echo trails
off center
pi lines
pulse expansion

Connections

NMEA 2000 COMPATIBLE
NMEA 0183 COMPATIBLE
GPS antenna BNC
  • CR 1522
  • Power cable
  • Bail mount kit with knobs
  • Flush mount kit with gasket
  • Protective cover
  • Trim caps
  • Install template
  • Hardware
  • Documentation
