GPSMAP® 942

產品料號 010-01739-01

線上商店

產品特色
產品規格
標準配備
軟體更新
配件
適用機台

9-inch Touchscreen Chartplotter

9-inch high-resolution intuitive touchscreen controls
NMEA 2000® and NMEA 0183 support for network connectivity, including autopilots, digital switching, weather, FUSION-Link, VHF, AIS and more
Garmin Marine Network support for sharing sonar, including Panoptix™ sonar, maps, user data, radar and IP cameras among multiple units
Preloaded U.S. LakeVü HD maps and BlueChart® g2 HD charts

Experience an advanced navigation solution with this compact 9-inch GPSMAP 942 touchscreen chartplotter. Includes wireless connectivity features for Garmin mobile apps, NMEA 2000 support and Garmin Marine Network support for radar and Panoptix FrontVü collision avoidance sonar.

Garmin Marine Network and NMEA 2000 Support

Full-network compatibility allows you to add more capabilities to your boat. Garmin Marine Network support allows sharing of sonar, including Panoptix sonar, maps, user data, dome or open-array radar and IP cameras among multiple units. Plus, there’s NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.

Built-in Wi-Fi® Connectivity

Enjoy built-in Wi-Fi connectivity for BlueChart Mobile 2.0 and Garmin Helm apps. Garmin Helm allows you to view and control your compatible chartplotter from a compatible smartphone or tablet while providing enhanced situational awareness for the mariner. With BlueChart Mobile, a free app downloaded from the App Store™, you can get reliable weather information while you plan marine routes on your iPad® or iPhone® then wirelessly transfer them to your boat’s compatible networked Garmin chartplotter. You can even stream and control a VIRB action camera from the chartplotter.

Built-in ANT® Connectivity

Enjoy built-in ANT wireless connectivity directly to quatix® marine watch, Garmin Nautix™ in-view display, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls.

Heading and Position Refreshed 10 Times per Second

Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.

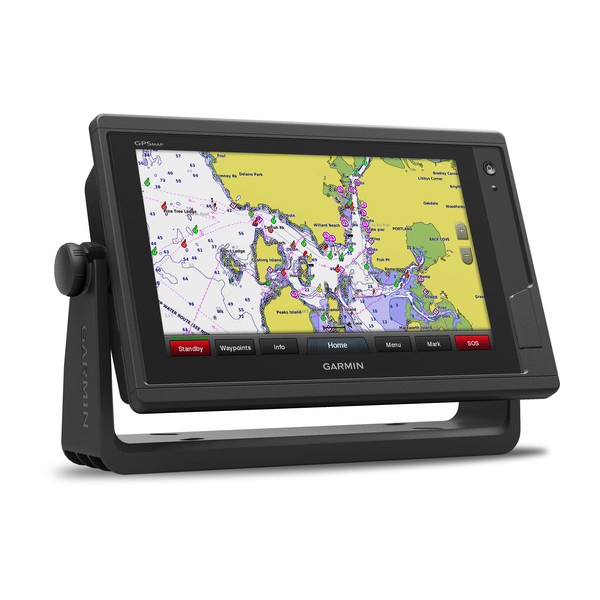

Preloaded with Exceptional Garmin Cartography

You get both LakeVü HD inland waters mapping and BlueChart g2 HD coastal charts.

LakeVü HD provides highly detailed freshwater maps that include 17,000+ U.S. lakes, rivers and reservoirs. Included in those are more than 13,000 HD lakes with 1-foot contours shoreline to shoreline. Upgrade to LakeVü HD Ultra with Max Def Lakes.

BlueChart g2 HD provides basic coastal charts, tidal stations, currents, depth contours, IALA symbols and includes fishing charts. It also transitions smoothly between zoom levels and delivers seamless continuity across chart boundaries.

Upgrade to Our Best Maps on the Water

Include expandable memory for accessory map purchases, such as LakeVü HD Ultra with Max Def Lakes or BlueChart® g2 Vision® HD that add Garmin patented Auto Guidance¹ and other great features.

Quickdraw Contours to Create Your Own HD Maps

Instantly create personalized HD fishing maps on-screen with 1-foot contours. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.

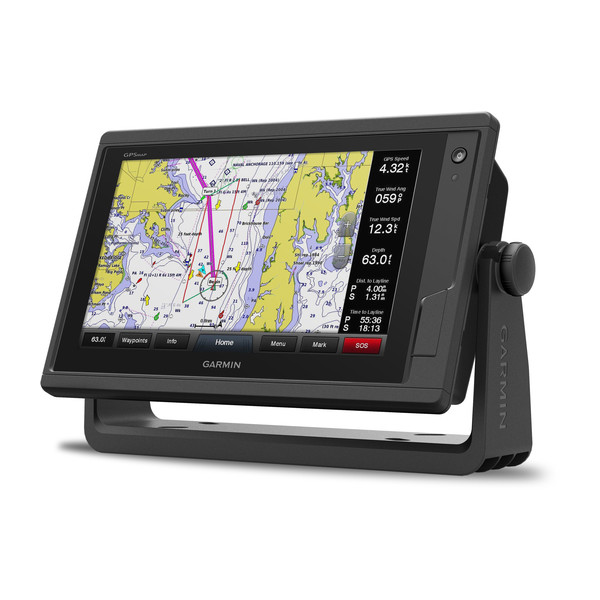

Built-in SailAssist Features

To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.

GPX Waypoints Transfer

If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.

¹Auto Guidance is for planning purposes only and does not replace safe navigation operations.

iPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Wi-Fi is a registered trademark of the Wi-Fi Alliance.

相關連結

Physical & Performance
Physical dimensions	10.1" x 6.4" x 2.1" (25.6 x 16.2 x 5.2 cm)
Display size, WxH	7.7" x 4.5" (19.6 x 11.4 cm)
Display resolution, WxH	1024 x 600 pixels
Display type	Multi-touch touchscreen WSVGA display
Weight	2.52 lbs
Antenna	Internal or external over NMEA 2000
NMEA 2000® compatible
NMEA 0183 compatible
SiriusXM™ Weather & Radio compatible
Power consumption	Max power usage at 10 Vdc: 27 WTypical current draw at 12 Vdc: 1.3 AMax current draw at 12 Vdc: 2.3 A
Mounting options	Bail or flush
Garmin Marine Network™ ports	1

Maps & Memory
Preloaded maps	BlueChart® g2 (coastal maps) and LakeVü HD (inland maps)
Accepts data cards	2 microSD™ cards
Waypoints	5,000
Routes	100
Track log	50,000 points; 50 saved tracks

Chartplotter Features
Garmin Radar compatible
Garmin Sonar compatible
Garmin SmartMode compatible (customizable monitor presets)
Supports AIS (tracks target ships position)
Supports DSC (displays position data from DSC-capable VHF radio)
Tide tables
Garmin Meteor™ Audio System compatible
Supports FUSION-Link™ compatible radios
GSD™ Black Box sonar support
GCV™ Black Box sonar support
BlueChart® Mobile (planning) compatible
Garmin Helm compatible
GRID™ (Garmin Remote Input Device) compatible
Wireless remote compatible

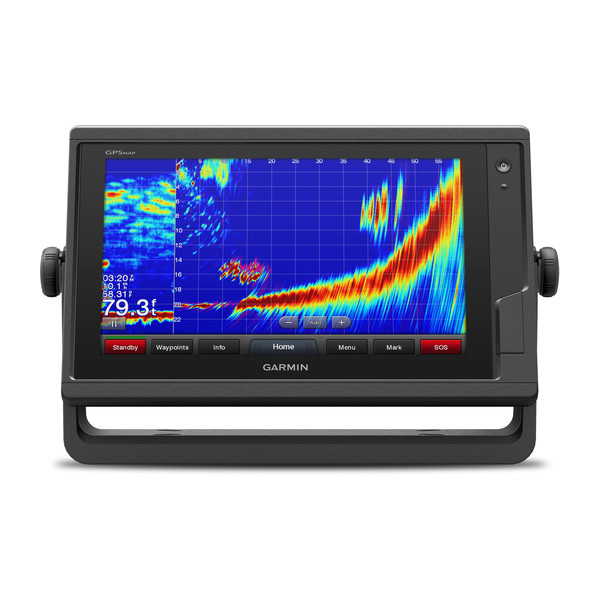

Sonar Features & Specifications
Dual-frequency (50/200 kHz) sonar capable
Dual-beam (77/200 kHz) sonar capable
Frequencies supported	Traditional sonar (50/77/83/200 kHz), CHIRP (low, medium, high), CHIRP ClearVü (260/455/800 kHz)
Transmit power	1 kW traditional; 1 kW single channel CHIRP
CHIRP sonar technology	(Built-in)
ClearVü	with CHIRP (built-in)
SideVü	(with external black box, sold separately)
Maximum depth	5,000 ft at 1kW(depth capacity is dependent on water bottom type and other water conditions)
Bottom lock (shows return from the bottom up)
Water temperature log and graph
Sonar recording
Sonar history rewind

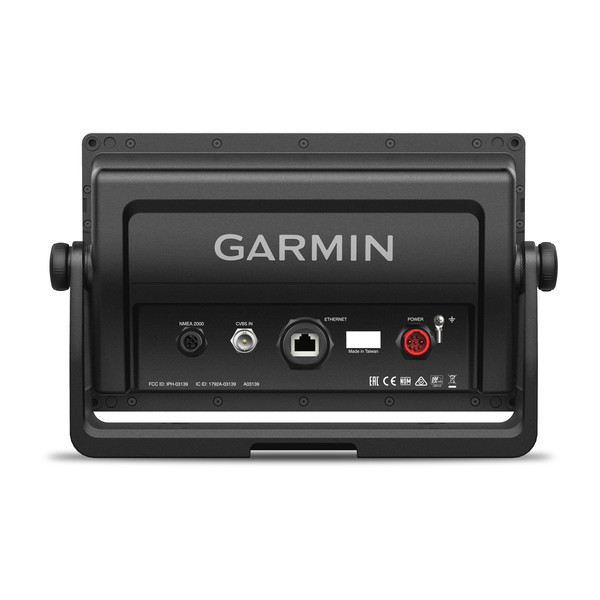

Connections
Transducer pin numbers	8
NMEA 0183 input ports	1 (Differential)
NMEA 0183 output ports	1 (Differential)
Video input ports	1 BNC
Video output ports
Wireless connectivity

Additional
Additional	User interface: Multi-touch touchscreen Auto backlight dimming: Yes VIRB® compatible Wearables compatible through ANT gWind wireless compatible

GPSMAP 942 chartplotter
Power cable
Bail mount kit with knobs
Flush mount kit with gasket
Protective cover
Trim piece snap covers
Documentation
