GPSMAP® 7610

產品料號 010-01306-11

線上商店

產品特色
產品規格
標準配備
軟體更新
配件
適用機台

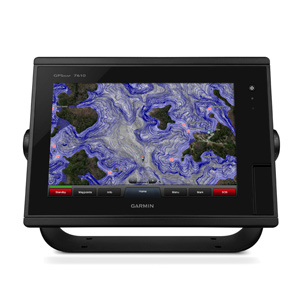

10-inch Fully Network Capable Chartplotter

10-inch multi-touch widescreen display (1280 x 800 WXGA) preloaded with both BlueChart® g2 U.S. coastal and LakeVü™ HD maps
High-sensitivity internal 10 Hz GPS/GLONASS
Fully network capable for Garmin Marine Network and NMEA 2000®, plus NMEA 0183 support
Supports GSD™ premium sonar and GCV™ scanning sonar modules
Advanced sailing and sail racing features

Designed for cruisers, sailors and sailing racers who demand high performance, ease of operation and feature integration, the GPSMAP 7610 chartplotter with 10-inch multi-touch widescreen display has a 10 Hz internal GPS that updates position and heading 10 times per second. It is fully network capable, including the Garmin Network and NMEA 2000, and offers the conveniences of built-in Wi-Fi® connectivity.

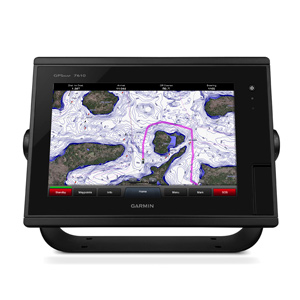

Preloaded BlueChart g2 Maps

In addition to basic charts, tidal stations, currents, depth contours, IALA symbols and included fishing charts, BlueChart g2 offers smooth transitioning between zoom levels and more seamless continuity across chart boundaries. You can customize your screens with Safety Shading that allows you to shade all depth contours shallower than your boat’s safe depth. Fishing charts emphasize bathymetric contours with less visual clutter on the display. And there’s also a choice of standard 2-D direct overhead or 3-D “over-the-bow” map views for easier chart reading and orientation.

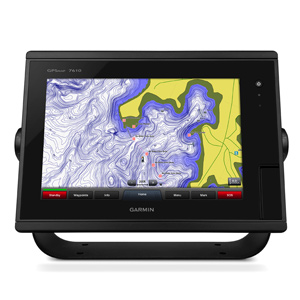

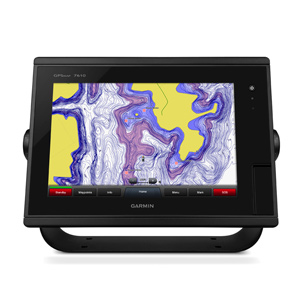

Preloaded LakeVü HD Maps

These highly detailed freshwater maps include 17,000+ U.S. lakes, rivers and reservoirs. Included in those are more than 5,700 HD lakes with 1-foot contours shoreline to shoreline; excellent detail of underwater features plus Safety Shading that allows you to designate a minimum depth; interstates, highways, general roads and bridges; designated fishing areas; and points of interest, such as docks, boat ramps, marinas and campgrounds.

Garmin Marine Network and NMEA 2000 Support

Full-network compatibility allows you to add more capabilities to your boat. GPSMAP 7410 supports radar, autopilot, instruments, multiple screens, FUSION-Link, sensors, remote sonar modules, digital switching, thermal cameras, GRID rotary knob, joystick and keypad control, GXM™ 52 marine weather receiver and more.

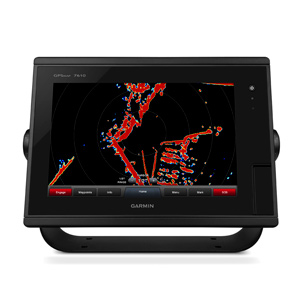

Add Array or Dome Radar

You can add your choice of Garmin marine radar, including our powerful xHD2 open array radars or xHD dome radars that pairs ease of use with advanced open array features.

Network Sharing

GPSMAP 7610 allows you to share features with other compatible GPSMAP units, such as radar, GCV 10 ClearVü and SideVü scanning sonar, GSD 24, GSD 25 and GSD 26 sonar modules, supplemental maps, and user data, including waypoints, routes and tracks. User data entered into 1 chartplotter can be automatically synced with other chartplotters in a network.

Heading and Position Refreshed 10 Times Per Second

Fast, responsive 10 Hz GPS/GLONASS refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.

Special Sailing Features

Supported sailing features include laylines, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider. Gauge displays are designed to provide important need-to-know information at a glance, including true and apparent wind angle, set and drift, true or apparent wind speed, horizontal or vertical graphs, and a data bar with customizable data fields.

Compatible with gWind™ Transducers

Garmin gWind, gWind Wireless and gWind Race transducers feature twin-fin technology with 3-bladed propeller. Connect to the NMEA 2000 and compatible Garmin chartplotters via the GND™ 10 black box bridge.

Black Box Interface

The GND 10 black box interface seamlessly integrates Nexus instruments and sensors with the Garmin family. It converts data between the Nexus network and NMEA 2000 to provide trouble-free compatibility between Nexus and Garmin products.

Upgrade with the Best Maps on the Water

Two SD™ card slots provide expandable memory for accessory map purchases, such as LakeVü HD Ultra with Max Def Lakes or BlueChart g2 Vision that add Garmin patented Auto Guidance and other great features.

FUSION-Link Entertainment System

Enjoy the ability to control all compatible FUSION-Link-enabled audio systems directly from your compatible chartplotter display.

Built-in Wi-Fi/ANT+™

Built-in Wi-Fi/ANT for use with Garmin Helm™ and BlueChart Mobile.

View and Control Your Device from a Smartphone or Tablet

Garmin Helm allows you to view and control your compatible Garmin chartplotter from a compatible smartphone or tablet while providing enhanced situational awareness for the mariner. Easily switch between portrait and landscape mode to accommodate mounting preferences. When using an iPhone® or iPad®, you can even record a movie of your chartplotter screen to share with friends and family. Download from The App Store™ or Google Play™.

Get Your Apple® Device Onboard with BlueChart Mobile

With BlueChart Mobile, a free app downloaded from the App Store, you can plan marine routes on your iPad or iPhone then wirelessly transfer them to your boat’s compatible networked Garmin chartplotter. Even if you don’t have a Garmin chartplotter, you can still take advantage of the tremendous features of BlueChart on your Apple device.

iPhone and iPad are trademarks of Apple Inc. App Store is a service mark of Apple Inc. Android and Google Play are trademarks of Google Inc. Wi-Fi is a registered trademark of the Wi-Fi Alliance.

相關連結

Physical & Performance
Physical dimensions	11.4” x 8.1” x 3” (28.9 x 20.6 x 7.6 cm)
Display size, WxH	8.6” x 5.3”; 10.1" diagonal (21.8 x 13.5 cm; 25.7 cm diagonal)
Display resolution, WxH	1280 x 800 pixels
Display type	WXGA display
Weight	5.2 lbs.
Water rating	IPX7
Receiver	10 Hz GPS/GLONASS
Antenna	Internal or external over NMEA 2000
Mounting options	Bail, flat or flush
Power consumption	Max power usage at 10 Vdc: 30 W Typical current draw at 12 Vdc: 1.95 A Max current draw at 12 Vdc: 2.5 A

Maps & Memory
Preloaded maps	BlueChart^® g2 (coastal maps) and LakeVü HD (inland maps)
Accepts data cards	2 SD™ cards
Waypoints	5,000
Routes	100
Track log	50,000 points; 50 saved tracks

Features & Benefits
Garmin Radar compatible
Garmin Sonar compatible	(when connected to another compatible sonar device)
NMEA 2000^® compatible
NMEA 0183 compatible
Garmin SmartMode compatible (customizable monitor presets)
Supports AIS (tracks target ships position)
Supports DSC (displays position data from DSC-capable VHF radio)
Tide tables
Garmin Meteor Audio System compatible
Supports Fusion-Link compatible marine radios
GSD™ Black Box sonar support
GCV™ Black Box sonar support
SiriusXM™ Weather & Radio compatible
BlueChart^® Mobile (planning) compatible
Garmin Helm compatible
GRID™ (Garmin Remote Input Device) compatible
Wireless remote compatible
Wireless mouse compatible

Sonar Features & Specifications
Dual-frequency (50/200 kHz) sonar capable	(when connected to another compatible sonar device)
Dual-beam (77/200 kHz) sonar capable	(when connected to another compatible sonar device)
CHIRP sonar technology	(when connected to another compatible sonar device)
ClearVü™	(when connected to another compatible sonar device)
SideVü™	(when connected to another compatible sonar device)
Voltage range	10-32 Vdc input

Connections
NMEA 0183 input ports	2
NMEA 0183 output ports	2
Video input ports	2 Composite
Video output ports	1 DVI-D
Wireless connectivity
Garmin Marine Network™ ports	2
Additional	User interface: Multi-touch touchscreen Auto backlight dimming: Yes Supplemental map sharing: Yes Internal sonar sharing: Yes, receive only

GPSMAP 7610 with worldwide basemap preloaded with U.S. BlueChart® g2 and U.S. LakeVü™ HD
Power/data cable
NMEA 2000® drop cable
T-connector
Bail mount with knobs
Flush mount kit
Protective cover
Grommet
Documentation
