GHC™ 20 Marine Autopilot Control Unit

產品料號 010-01141-00

線上商店

產品特色
產品規格
標準配備
軟體更新
配件
適用機台

Take Control of Your Autopilot

Compatible with legacy Garmin autopilots, as well as, newer Garmin autopilots and can be controlled with quatix™

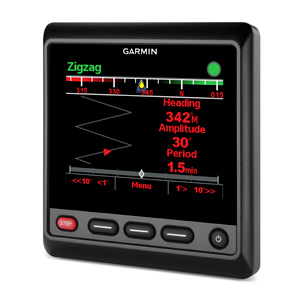

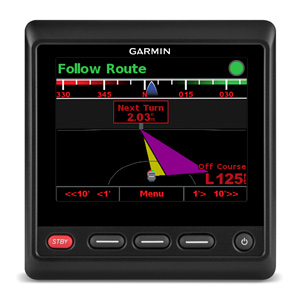

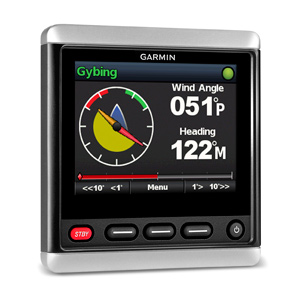

Large, bright 4” color glass-bonded display with anti-glare finish
Easy to read from a distance and 170 degree viewing angle
Enhanced night time readability with backlight dimmer and full color or new red/black or green/black color schemes
Enhanced daylight readability with new high contrast color option

The GHC 20 autopilot helm controller is compatible with newer Garmin autopilots as well as legacy models on both power and sail vessels.

It's large, bright 4” color display is easy to read at a distance and 170 degree viewing angle. Glass-bonded anti-glare lens prevents fogging and increases contrast. Daylight readability is enhanced with a high contrast color scheme. For enhanced night visibility, you have a choice of red/black, green/black or the normal night mode color scheme along with a dimmer control.

An optional handheld wireless remote control is available; however, for the highest level of convenience, control the GHC 20 using quatix™, the world’s first marine GPS navigation watch featuring ANT® wireless technology. Power is supplied by the NMEA 2000® network. Included are 2 trim snap piece cover options which allow you to match the GHC 20 with the new GPSMAP® 500/700 series, GPSMAP 8000 Glass Helm series or legacy Garmin chartplotters.

相關連結

Unit dimensions, WxHxD: 4.3 " x 4.4 " x 1.9 " (10.9 x 11.2 x 4.8 cm)

Display resolution, WxH: 320 x 240 pixels

Display type: QVGA color LCD display

NMEA output: NMEA 0183, NMEA 2000®

Supply voltage: Powered by NMEA 2000 bus, 9-16 VDC, units operate up to 32 VDC

Operating temperature: -15° C to 70 C° (5° F to 158° F)

Max power consumption 12/24V: 200 mA/100 mA

Viewing angle: 170°

Brightness: 1000 cd/m2 (NIT)

GHC™ 20
Black trim piece snap cover
Protective cover
Flush mount gasket and hardware
NMEA 2000 drop cable
NMEA 2000 T-connectors and terminators
Documentation
